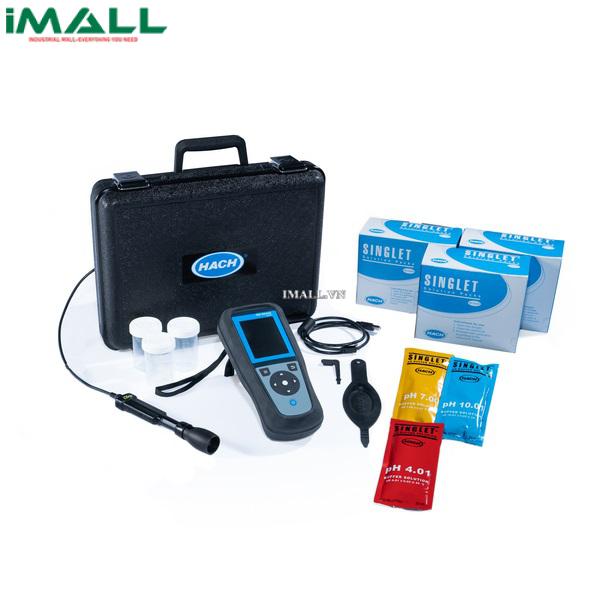

HACH HQ2200 Portable Multi-Meter ( pH/ORP/EC/Salt/TDS/DO)

Technical Specifications

• Accessories Included: USB charger, power cable, and clips
• Automatic Buffer Recognition:Yes
• Backlight: Yes
• Cable Length: 1m
• Calibration Intervals/Alerts/Reminder:
• Off, selectable from 2 hours to 7 days
• Certifications: CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
• Data Export: USB connection to PC or USB storage device (limited to the storage device capacity).
• Data Memory: 10,000 data points
• Data Storage: Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode.
• Display: Up to 3 parameters at a time, dependent on HQ model
• Display Type: 536x336 Mono-TFT
• DO Measurement Range: 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation
• DO Resolution: 0.1
• Enclosure Rating: IP67 (with battery compartment installed)
• GLP Features: Date; Time; Sample ID; Operator ID, Calibration
• Inputs: 2
• Instrument: Portable
• ISE Direct Measurement Range: No
• ISE Electrode Calibration: No
• Kit?: Yes
• Languages: English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian
• Lock Function: Continuous / Auto-stabilization ("press to read") / At Interval
• Measurement Method:
• Probe specific programmed method settings
• Model: HQ2200 Multi/2 Channels
• mV Measurement at Stable Reading: Yes
• mV Measurement Range: Yes
• mV Resolution: 0.1 mV
• Operating Error Messages: Clear text error messages displayed
• Operating Humidity: 90% (non-condensing)
• Operating Interface: Soft Touch Keypad
• Operating Temperature: 0 - 60 °C
• ORP Electrode Calibration: Predefined ORP standards (including Zobell's solution)
• Parameter: pH
• pH Buffer Sets: Colour-coded: 4.01, 7.00, 10.01 pH;
• IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45
• DIN: 1.09, 4.65, 9.23
• User-defined custom buffer sets
• pH Electrode calibration: 1 - 3 Calibration points
• Calibration summary data logged and displayed
• pH Measurement Range: 0 - 14 pH
• pH Resolution:
  • Selectable: 0.001/0.01/0.1 pH
• Power Supply: Rechargeable lithium-ion battery 18650 (internal)
• Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external)
• Probes included: PHC10105
• Probe Type:
• Intellical Standard Laboratory or Rugged Field
• Protection Class:
• IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external
• Region: US
• Salinity Measurement Range: 0 - 42 (ppt) (‰)
• Salinity Resolution: 0.01 (ppt) (‰)
• Sensor A:PHC10105
• Sensor B:None
• Sensor C:None
• Software available:Claros
• Storage Conditions:-20 - 60 °C, max. 90% relative humidity (non-condensing)
• TDS Measurement Range:0.00 mg/L - 50.0 g/L NaCl
• TDS Resolution:0.01 mg/L - 0.1 g/L upon measuring range
• Temperature Compensation:
• Automatic Temperature compensation for pH
• Temperature Measurement:°C or °F
• Temperature Resolution:0.1 °C
• Type of measurement:Field Measurements
