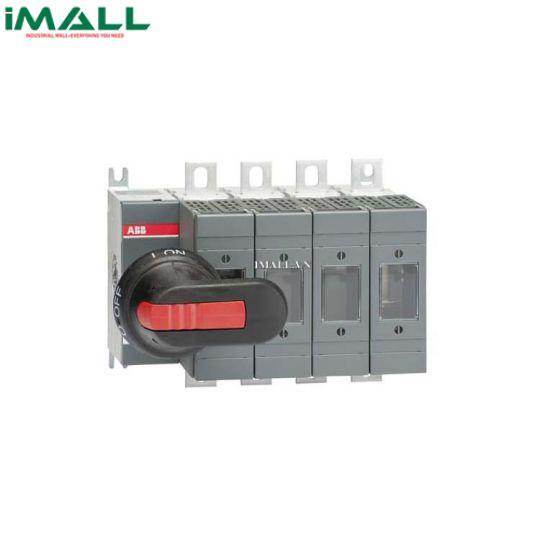

Cầu dao cắt tải ABB OS32GD22N2P (1SCA115202R1001, 32A)

Technical Specifications

• Rated Operational Current AC-21A (Ie):
  • (500 V) 32 A
  • (690 V) 32 A
• Rated Operational Current AC-22A (Ie):
  • (500 V) 32 A
  • (690 V) 32 A
• Rated Operational Current AC-23A (Ie):
  • (500 V) 32 A
  • (690 V) 32 A
• Rated Operational Power AC-23A (Pe):
  • (220 ... 240 V) 7.5 kW
  • (400 V) 15 kW
  • (415 V) 15 kW
  • (500 V) 18.5 kW
  • (690 V) 22 kW
• Conventional Free-air Thermal Current (Ith):q = 40 °C 32 A
• Conventional Thermal Current (Ithe):Fully Enclosed 32 A
• Rated Impulse Withstand Voltage (Uimp):12 kV
• Rated Insulation Voltage (Ui):1000 V
• Rated Operational Voltage:Main Circuit 690 V AC
• Rated Short-time Withstand Current Low Voltage (Icw):for 1 s 2.5 kiloampere rms
• Rated Conditional Short-Circuit Current (Inc):(690 V) 80 kA
• Power Loss:at Rated Operating Conditions per Pole 7.5 W
• Pollution Degree:3
• Handle Type:Pistol handle and shaft included
• Fourth Pole Position:Right Side
• Fourth Pole Type:Switched - With Solid Link
• Switches Operating Mechanism ():22 (Between the Poles)
• Position of Line Terminals:Top In - Bottom Out, Bottom In - Top Out
• Fuse Size:NH000
• Fuse System:DIN
• Operating Mode:Front Operated
• Standards:IEC 60947-3
• Mounting Type:Base mounting
• Number of Poles:4
• Cable Cross-Section:2.5 ... 25 mm²
• Terminal Type:Screw Terminals
• Tightening Torque:
  • 3 N·m
  • 4 N·m
• Rated Current (In):Main Circuit 32 A
