Product Details
Manufacturer:
KEYSIGHT
Model:
J7201C
Warranty:
Origin:
Authentic
Technical Specifications
- Frequency range: DC to 26.5 GHz
- Attenuation range: 0 to 101 dB
- Attenuation step size: 1, 5, 10 dB
- Insertion loss: (at 0 dB) DC to 6 GHz: 2.5 dB 6 to 18 GHz: 4.0 dB 18 to 26.5 GHz: 5.0 dB
- Return loss: (VSWR) DC to 6 GHz: 16 dB (1.35) 6 to 18 GHz: 11 dB (1.78) 18 to 26.5 GHz: 7 dB (2.61)
- RF repeatability per section: 0.03 dB typical
- Maximum input power: 1 W (+30 dBm)
- Switching speed: 20 ms
- Operating life 5 million cycles
- Connectivity: GPIB/USB/LAN (LXI Class C)
- Connector type: 3.5 mm (f)
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

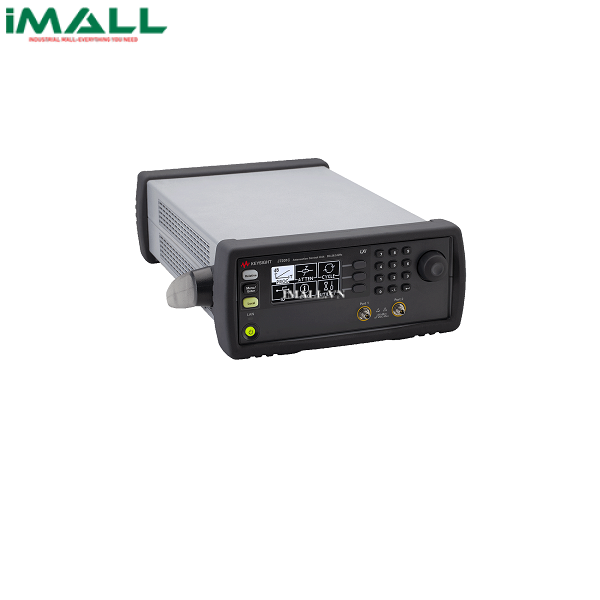

- KEYSIGHT J7201C Attenuation Control Unit (26.5 GHz)
