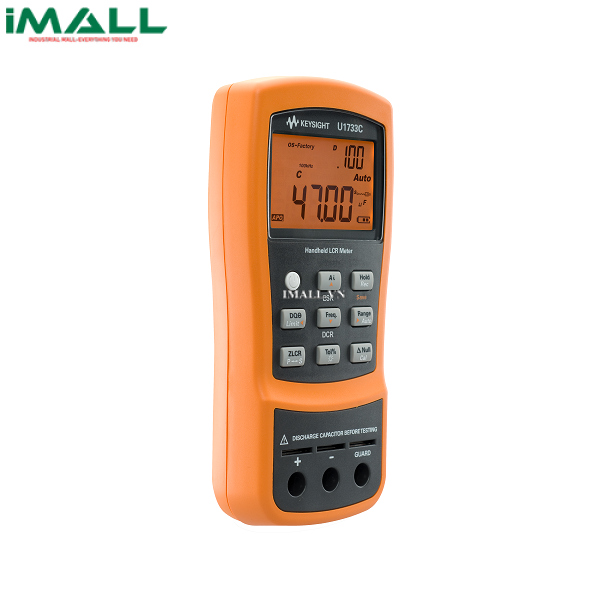

KEYSIGHT U1733C Handheld LCR Meter (100Hz, 120Hz, 1kHz, 10kHz,100kHz)

Technical Specifications

• Test frequency: 100 Hz, 120 Hz, 1kHz, 10Khz, 100Khz
• Measurements: Z/L/C/R/D/Q/θ/ESR/DCR
• Resistance: 2 Ω, 20 Ω, 200 Ω, 2000 Ω, 20 kΩ, 200 kΩ, 2000 kΩ, 2000 kΩ, 20 MΩ, 200 MΩ
• Accuracy: 0.2-0.7%
• Capacitance: 20 pF, 200 pF 2000 pF, 0.1 pF, 20 nF, 200 nF, 2000 nF, 20 μF, 200 μF, 2000 μF, 20 mF
• Accuracy: 0.2-0.5%
• Inductance: 20 μH, 200 μH, 2000 μH, 20 mH, 200 mH, 2000 mH, 20 H, 200 H, 2000 H
• Accuracy: 0.2-1%
• Phase Angle of Impedance: –180o ~180 o
• Impedance Zx: 1999.9 Ω, 199.9 Ω, 19.9 Ω, 1.9 Ω
• Quality Factor Z, L, C: 0.001~999
• Power supply: Single standard 9 V battery (alkaline or carbon-zinc) or optional power adaptor
