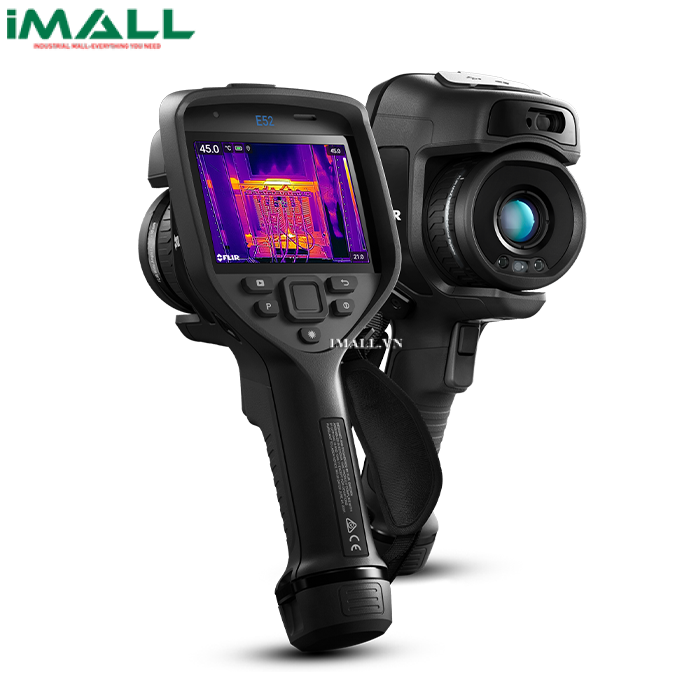

Camera ảnh nhiệt FLIR E52 (0°C ~ 550°C)

Technical Specifications

• IR Resolution 240 × 180 pixels
• Thermal Sensitivity/NETD <50 mK @ 30°C (86°F)
• Accuracy ±2°C (±3.6°F) or ±2% of the reading
• Digital Camera 5 MP, with built-in LED photo/video lamp
• Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
• Storage Media Removable SD card
• IMAGING & OPTICAL
  • Color Palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
  • Detector Type and Pitch Uncooled microbolometer, 17 µm
  • Digital Camera 5 MP, with built-in LED photo/video lamp
  • Digital Zoom 1-4× continuous
  • f-number 1.3
  • Focus Manual
  • Image Frequency 30 Hz
  • IR Resolution 240 × 180 pixels
  • Lens Identification NA
  • Minimum Focus Distance 0.15 m
  • Non-radiometric IR video streaming H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
  • Picture-in-Picture Centered infrared area on the visual image
  • Radiometric IR video recording Real-time radiometric recording (.csq)
  • Radiometric IR video streaming Yes, over UVC
  • Spectral Range 7.5-14 µm
  • Thermal Sensitivity/NETD <50 mK @ 30°C (86°F)
  • UltraMax No
  • Viewfinder No
• MEASUREMENT & ANALYSIS
  • Accuracy ±2°C (±3.6°F) or ±2% of the reading
  • Measurement Presets No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot
  • Object Temperature Range -20°C to 120°C (-4°F to 248°F); 0°C to 550°C (32°F to 1022°F)
  • Spot Meter 3 ea. in live mode
• USER INTERFACE
  • Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
  • Text Predefined list or touchscreen keyboard
  • Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
• POWER
  • Battery operating time > 2.5 hours at 25°C (68°F) and typical use
  • Battery type Rechargeable Li-ion battery
• ENVIRONMENTAL & CERTIFICATIONS
  • Operating Temperature Range -15 to 50°C (5 to 122°F)
  • Safety EN/UL/CSA/PSE 60950-1
  • Storage Temperature Range -40 to 70°C (-40 to 158°F)

Package Includes
