Product Details
Manufacturer:
ZONCN
Model:
Z8000 SERIES
Warranty:
Origin:
Thượng Hải (CN)
Technical Specifications
- The carrier frequency is automatically adjusted based on the load features;
- Wide Frequency range, adapt to most applications;
- V/F control, On board PID control; Modbus communication (Optional parts);
- Support for various PG card; Special for kinds of industries, with tension control, spindle servo, support for PM motor ect.
- Power range：220V 0.4kW~3.7kW 380V 0.75kW~1000kW 690V 11~1000kW
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

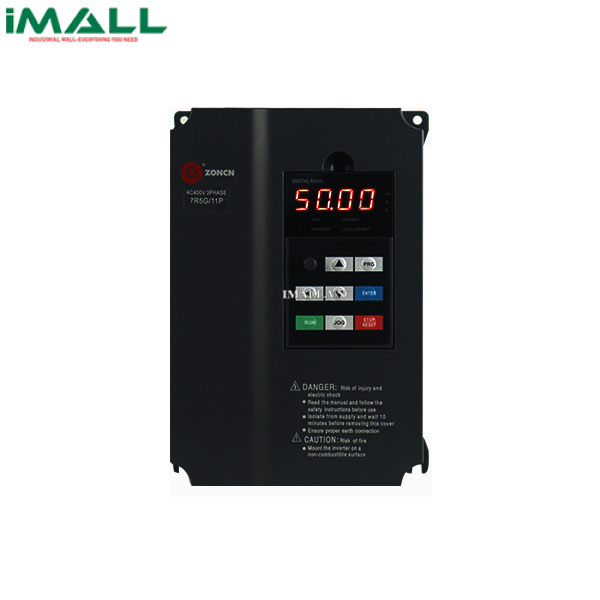

Mua Biến tần ZONCN Z8000 SERIES (0.4~ 1000kW) chất lượng cao tại đại lý uy tín. Tận hưởng hiệu suất tối ưu và tiết kiệm năng lượng với biến tần ZONCN Z8000 SERIES.
| Model | Input Voltage(A) | Rated Output Power（kW) | Rated Input Current（A) | Rated Output Current（A） | Motor Equipped （kW) |
| Z8200-0R4G | 1PH-AC220V (± 15%) | 0.4 | 5.4 | 2.4 | 0.4 |
| Z8200-0R75G | 1PH-AC220V (± 15%) | 0.75 | 7.2 | 4.5 | 0.75 |
| Z8200-1R5G | 1PH-AC220V (± 15%) | 1.5 | 10 | 7 | 1.5 |
| Z8200-2R2G | 1PH-AC220V (± 15%) | 2.2 | 16 | 10 | 2.2 |
| Z8200-3R7G | 1PH-AC220V (± 15%) | 3.7 | 23 | 16 | 3.7 |
| Z8400-0R7G | 3PH-AC380V (±15%) | 0.75 | 3.8 | 2.5 | 0.75 |
| Z8400-1R5G | 3PH-AC380V (±15%) | 1.5 | 5 | 3.7 | 1.5 |
| Z8400-2R2G | 3PH-AC380V (±15%) | 2.2 | 5.8 | 5 | 2.2 |
| Z8400-3R7G/5R5P | 3PH-AC380V (±15%) | 3.7/5.5 | 10/15.0 | 9.0/13 | 3.7/5.5 |
| Z8400-5R5G/7R5P | 3PH-AC380V (±15%) | 5.5/7.5 | 15/20 | 13/17 | 5.5/7.5 |
| Z8400-7R5G/11P | 3PH-AC380V (±15%) | 7.5/11 | 20/26 | 17/25 | 7.5/11 |
| Z8400-11G/15P | 3PH-AC380V (±15%) | 11/15.0 | 26/35 | 25/32 | 11/15.0 |
| Z8400-15G/18.5P | 3PH-AC380V (±15%) | 15/18.5 | 35/38 | 32/37 | 15/18.5 |
| Z8400-18.5G/22P | 3PH-AC380V (±15%) | 18.5/22 | 38/46 | 37/45 | 18.5/22 |
| Z8400-22G/30P | 3PH-AC380V (±15%) | 22/30 | 46/62 | 45/60 | 22/30 |
| Z8400-30G/37P | 3PH-AC380V (±15%) | 30/37 | 62/76 | 60/75 | 30/37 |
| Z8400-37G/45P | 3PH-AC380V (±15%) | 37/45 | 76/90 | 75/90 | 37/45 |
| Z8400-45G/55P | 3PH-AC380V (±15%) | 45/55 | 90/105 | 90/110 | 45/55 |
| Z8400-55G | 3PH-AC380V (±15%) | 55 | 105 | 110 | 55 |
| Z8400-75P | 3PH-AC380V (±15%) | 75 | 140 | 150 | 75 |
| Z8400-75G/90P1 | 3PH-AC380V (±15%) | 75/90 | 140/160 | 150/176 | 75/90 |
| Z8400-90G/110P1 | 3PH-AC380V (±15%) | 90/110 | 160/210 | 176/210 | 90/110 |
| Z8400-110G/132P1 | 3PH-AC380V (±15%) | 110/132 | 210/240 | 210/253 | 110/132 |
| Z8400-132G/160P | 3PH-AC380V (±15%) | 132/160 | 240/290 | 253/300 | 132/160 |
| Z8400-160G/185P | 3PH-AC380V (±15%) | 160/185 | 290/330 | 300/340 | 160/185 |
| Z8400-185G/200P | 3PH-AC380V (±15%) | 185/200 | 330/370 | 340/380 | 185/200 |
| Z8400-200G/220P | 3PH-AC380V (±15%) | 200/220 | 370/410 | 380/420 | 200/220 |
| Z8400-220G/250P | 3PH-AC380V (±15%) | 220/250 | 410/460 | 420/470 | 220/250 |
| Z8400-250G/280P | 3PH-AC380V (±15%) | 250/280 | 460/500 | 470/520 | 250/280 |
| Z8400-280G/315P | 3PH-AC380V (±15%) | 280/315 | 500/580 | 520/600 | 280/315 |
| Z8400-315G/350P | 3PH-AC380V (±15%) | 315/350 | 580/620 | 600/640 | 315/350 |
| Z8400-350G/400P | 3PH-AC380V (±15%) | 350/400 | 620/670 | 640/690 | 350/400 |
| Z8400-400G/450P | 3PH-AC380V (±15%) | 400/450 | 670/790 | 690/790 | 400/450 |
| Z8400-450G/500P | 3PH-AC380V (±15%) | 450/500 | 790/835 | 790/860 | 450/500 |
| Z8400-500G/560P | 3PH-AC380V (±15%) | 500/560 | 835/920 | 860/950 | 500/560 |
| Z8400-560G/630P | 3PH-AC380V (±15%) | 560/630 | 920/1050 | 950/1100 | 560/630 |
| Z8400-630G/710P | 3PH-AC380V (±15%) | 630/710 | 1050/1123 | 00/1280 | 630/710 |
| Z8400-710G/800P | 3PH-AC380V (±15%) | 710/800 | 1126/1460 | 1280/1380 | 710/800 |
| Z8400-800G/900P | 3PH-AC380V (±15%) | 800/900 | 1460/1640 | 1380/1640 | 800/900 |
| Z8400-900G/1000P | 3PH-AC380V (±15%) | 900/1000 | 1640/1800 | 1640/1720 | 900/1000 |
| Z8400-1000G | 3PH-AC380V (±15%) | 1000 | 1800 | 1720 | 1000 |
