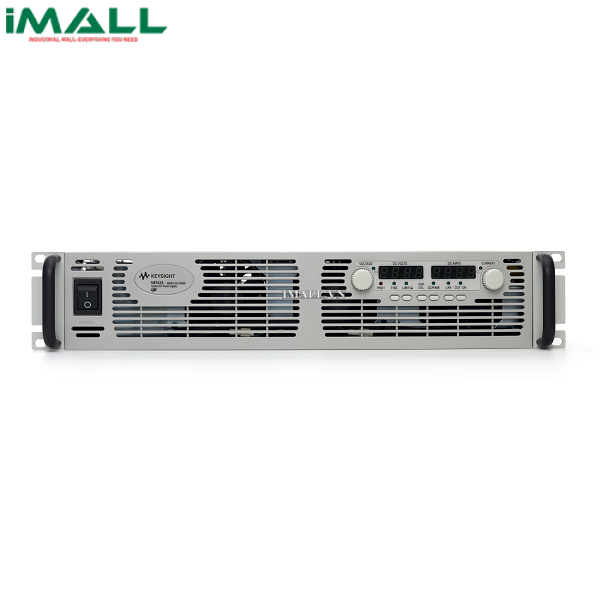

Nguồn DC KEYSIGHT N8754A (20V, 250A, 5000W)

Technical Specifications

• DC output ratings: 20V, 250A, 5000W
• Output ripple and noise: 75 mV p-p; 10 mV rms; 1000 mA rms
• Programming accuracy: 0.025%+ 15 mV; 0.1%+ 750 mA
• Measurement accuracy: 0.025%+ 25 mV; 0.1%+ 750 mA
• Command response time: 100 ms
• Over-voltage protection: 1-24 V
• Operating temperature: 0°C to 40°C @ 100% load
• Storage temperature: –20°C to 70°C
• Operating humidity: 30% to 90% relative humidity (no condensation)
• Storage humidity: 10% to 95% relative humidity (no condensation)
• Interface capabilities: GPIB, USB 2.0, 10/100 LAN, LXI
