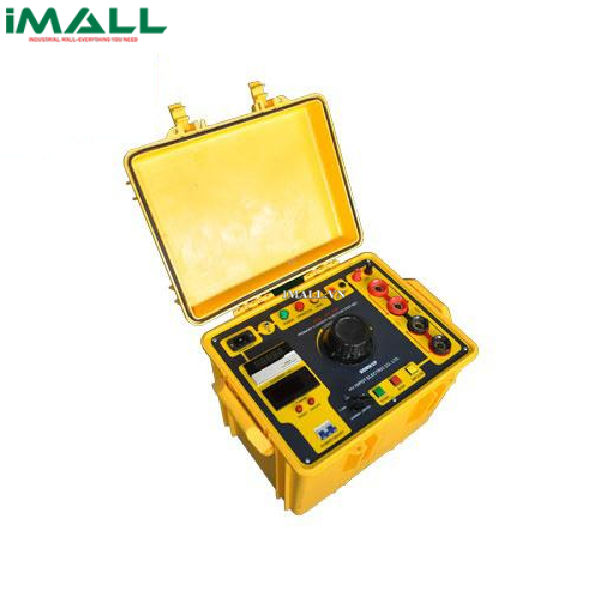

HV HIPOT GDSL-BX-200 Primary Current Injection Test Set (0-1000A AC in parallel; 0-500A AC in series)

Kết hợp này không tồn tại.

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Manufacturer:

HV HIPOT

Model:

GDSL-BX-200

Warranty:

Origin:

CHINA

Output current: 0-1000A AC in parallel, 0-500A AC in series
Capacity: 3kVA.
Output voltage: 3V in parallel, 6V in series.
Input voltage: AC220V, Single phase, 50Hz.
Current can be adjusted smoothly and continuously, accuracy level 1.0
Output current is standard sine wave, wave distortion is less than 5%.
Secondary injection current: 50A
Output current: RMS continuous adjustable.
The action time of test object can be tested, the lock action time is also can be recorded at same time.
Test range: 0.001S~999.999S, resolution 1ms, error: 0.005% range: ±2digs
Capacity is designed as 5 minus for short and discontinuous working.
Duty Cycle: 2.5mins ON, 10mins OFF if in batch test.
