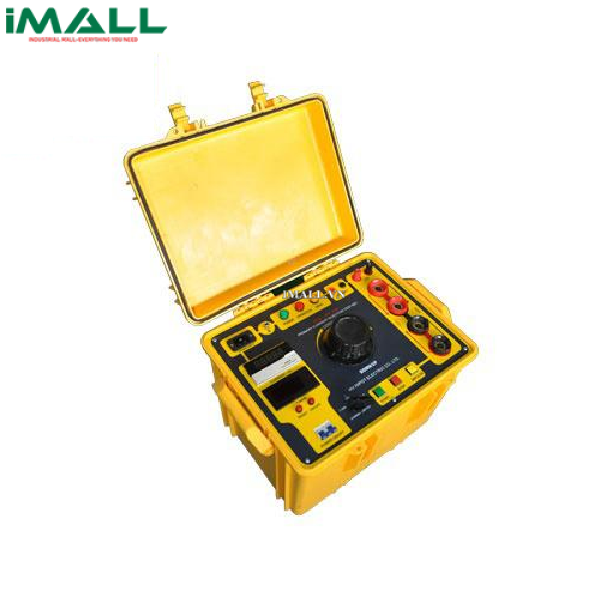

Bộ kiểm tra dòng thứ cấp HV HIPOT GDSL-BX-200 (0-1000A AC song song; 0-500A AC nối tiếp)

Technical Specifications

• Output current: 0-1000A AC in parallel, 0-500A AC in series
• Capacity: 3kVA.
• Output voltage: 3V in parallel, 6V in series.
• Input voltage: AC220V, Single phase, 50Hz.
• Current can be adjusted smoothly and continuously, accuracy level 1.0
• Output current is standard sine wave, wave distortion is less than 5%.
• Secondary injection current: 50A
• Output current: RMS continuous adjustable.
• The action time of test object can be tested, the lock action time is also can be recorded at same time.
• Test range: 0.001S~999.999S, resolution 1ms, error: 0.005%  range: ±2digs
• Capacity is designed as 5 minus for short and discontinuous working.
• Duty Cycle: 2.5mins ON, 10mins OFF if in batch test.
