Product Details
Manufacturer:
HUATEC
Model:
XHV-5
Warranty:
Origin:
Trung Quốc
Technical Specifications
| Type:XHV-5 Testing Forces: N:1.961, 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03 : KGF:0.2, 0.3, 0.5, 1, 2, 2.5, 5 Carriage Control:Automatic(loading/holding-up of loading /unloading) Holding Time: (0~60)s Amplification of the microscope: 200X, 400X Min. graduation value of the test drum wheel:0.0625um Testing field: 1HV~2967HV Lens/Indenter switch: With Motorized Turret Dimension of the X-Y table: 100X100mm Movement field of the X-Y table: 25X25mm Max. Height of the specimen: 170mm Max. width of the specimen: 130mm Light source:Cold light source Power: 110V/220V, 60/50HZ Objective:The objective 10x, 20x, 40x can be selected according to user’s requirement Standard accessories:X-Y stage test able: Largest test table, “V”Shape test table :10X Digital Micro Lens, Level, Adjustable Screw, Vicker Hardness Block, RS232 Interface Line (supply according to modle of instrument) Weight: Gross weight: 60Kg Net weight:50Kg |
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

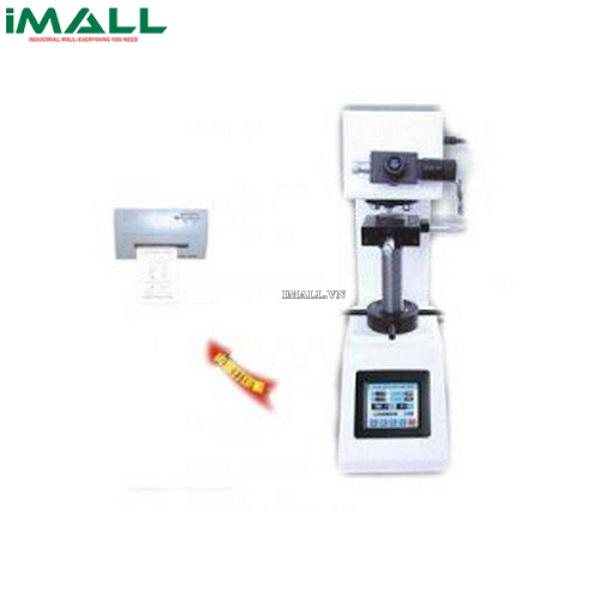

Máy thử độ cứng Vickers HUATEC XHV-5
