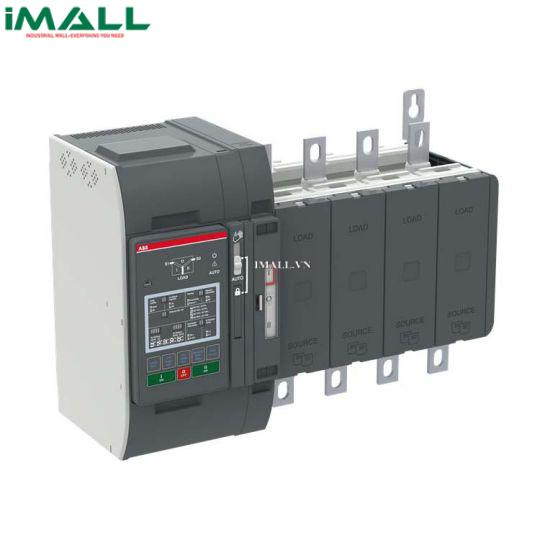

Bộ chuyển nguồn ABB OXB315E3S2QB (1SCA153501R1001, 315A)

Kết hợp này không tồn tại.

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Manufacturer:

ABB

Model:

OXB315E3S2QB

Warranty:

Origin:

Trung Quốc

Rated Operational Current AC-31B (Ie):(200 … 415 V AC) 315 A
Rated Operational Current AC-32B (Ie):(200 … 415 V AC) 315 A
Rated Operational Current AC-33B (Ie):(200 … 415 V AC) 315 A
Conventional Free-air Thermal Current (Ith):q = 40 °C 315 A
Rated Impulse Withstand Voltage (Uimp):12 kV
Rated Insulation Voltage (Ui):1000 V
Rated Operational Voltage:Main Circuit 200 ... 480 V AC
Rated Frequency (f):Main Circuit 50-60 Hz
Rated Short-time Withstand Current Low Voltage (Icw):for 0.3 s 25 kiloampere rms
Pollution Degree:3
Handle Type:Direct mounted handle
Fourth Pole Position:Left and Right Side
Fourth Pole Type:Switched - Simultaneous Function
Position of Line Terminals:Supplies on Bottom - Load on Top
Standards:IEC60947-6-1
Controller Type:Level 2 (DIP)
Special Functions:Open style
Number of Poles:4
Degree of Protection:Front IP20
Terminal Type:Bolt
Transition Type:Delayed

HS Code:

Estimated Import Tax:

0,00

Bộ chuyển nguồn ABB OXB315E3S2QB (1SCA153501R1001) 315A
