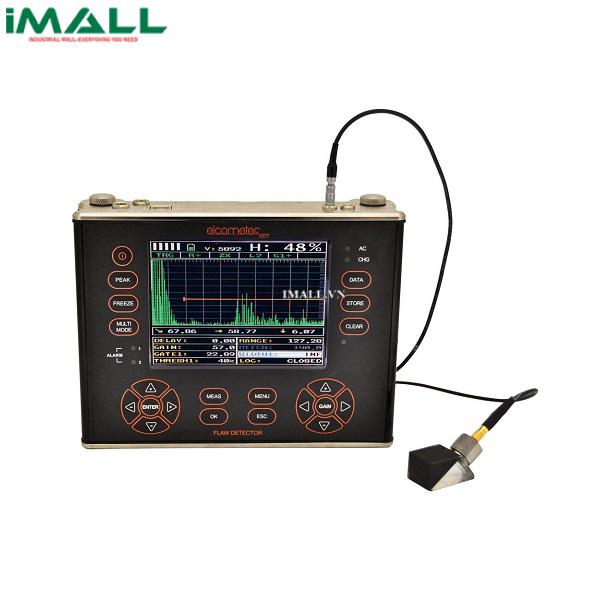

Máy siêu âm khuyết Elcometer FD800DL (0.01~30480mm, A/B-scan, đo qua lớp sơn, ghi dữ liệu, RS232, băng thông rộng, thêm băng)
Product Details
Manufacturer:
ELCOMETER
Model:
FD800DL
Warranty:
Origin:
Anh
Technical Specifications
- Màn hình A-scan: chỉnh +, chỉnh - , dạng sóng đầy đù (RF)
- Chế độ dò vết nứt: TRIG, DAC, AWS, TCG, Zero Crossing, sườn, đỉnh
- Chế độ đo: PE, PETP (bù nhiệt), EE (đo qua lớp sơn), EEV, CT (lớp phủ) & PECT
- Tốc độ đo:
- Bằng tay: 4 giá trị đọc mỗi giây
- Chế độ scan: 32 giá trị đọc mỗi giây
- Màn hình thanh scan: 6 giá trị đọc mỗi giây
- Dải đo: PE: 0.63 - 30480mm, PETP: 0.63 - 30480mm, EE: 1.27 - 102mm, EEV: 1.27 - 25.4mm, CT: 0.01 - 2.54mm, PECT: 0.63 - 30480mm, PECT: 0.01 - 2.54mm
- Độ chính xác: ± 1% hoặc ±0.1mm
- Độ phân giải: 0.01 mm
- Hiệu chuẩn vận tốc: 256 - 16,000m/s
- Ghi dữ liệu: 6Gb bên trong và thẻ nhớ SD ngoài lên tới 64Gb
- Băng tần: Băng rộng 1.8 - 19 MHz; bốn băng tần hẹp tại 1, 2, 5, 10MHz, thêm băng tần hẹp tại 5MHz, 15MHz
- Kiểu pin: 6 pin AA
- Thời lượng pin: 12 giờ, hiển thị pin yếu
- Nhiệt độ hoạt động: -10 đến 60ºC
- Giao tiếp RS232: Bi-directional
- Kiểu kết nối đầu dò: LEMO
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description
- Máy siêu âm khuyết Elcometer FD800DL (0.01~30480mm, A/B-scan, đo qua lớp sơn, ghi dữ liệu, RS232, băng thông rộng, thêm băng)
- FD800 Bench Top Flaw Detectors
- The bench-top FD800 flaw detector range combines state-of-the-art flaw detection with advanced material thickness capabilities.
- Designed for use in the laboratory these gauges are the tool you need for all your flaw detecting needs.
- The Elcometer FD800 Bench Top Flaw Detector is available in two models: FD800DL and FD800DL+.
- The time corrected gain (TCG) feature automatically compensates for sound attenuation through a material, further increasing the performance of the gauge.
- Within the grid batching of the FD800DL+ the user has the capability to enter OBSTRUCT on to the grid for easy identification of inaccessible locations to measure.
- The FD800DL+ has a 6Gb internal memory and an external SD slot which allows up to 64Gb with full data logging via RS232 data output to ElcoMaster® data management software.
